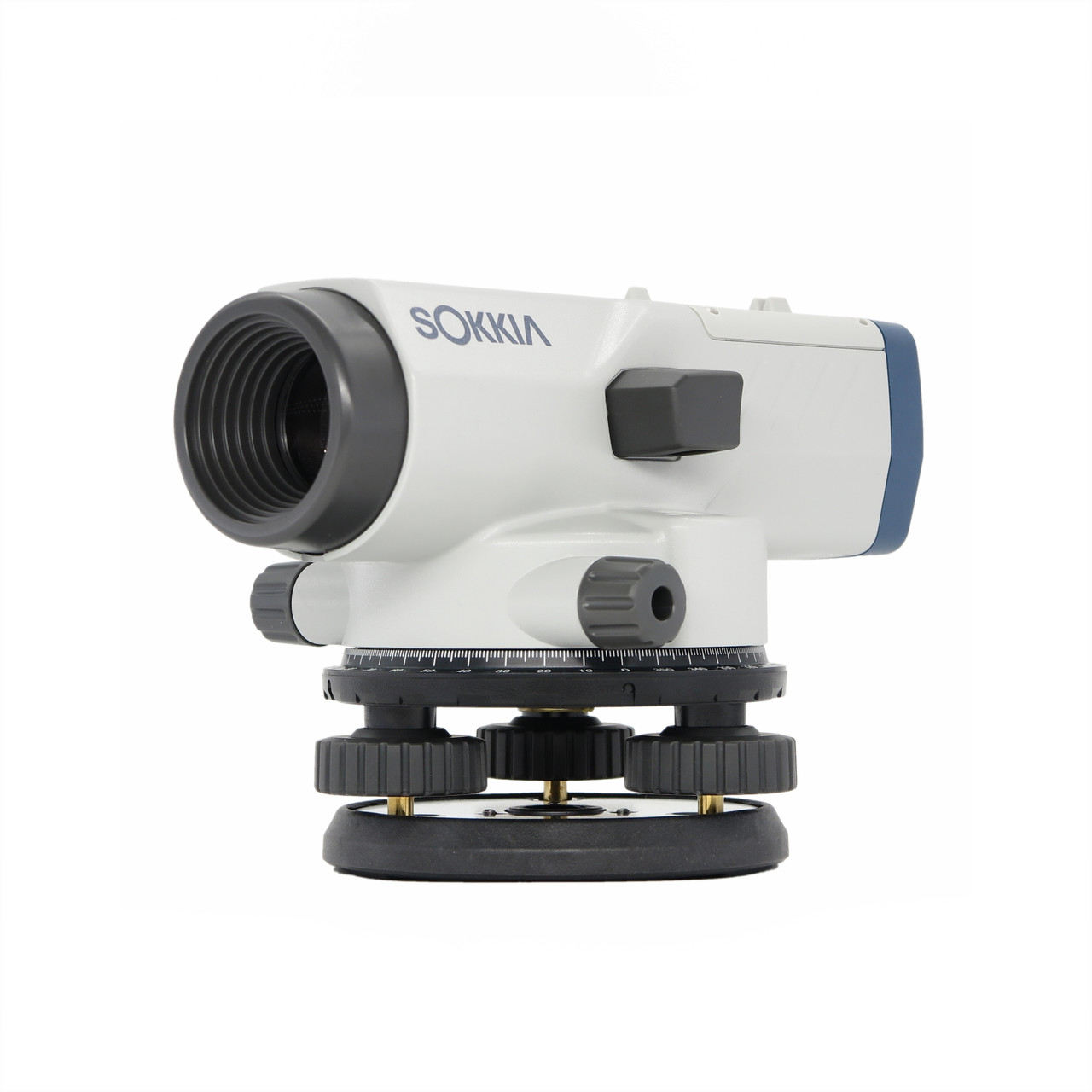

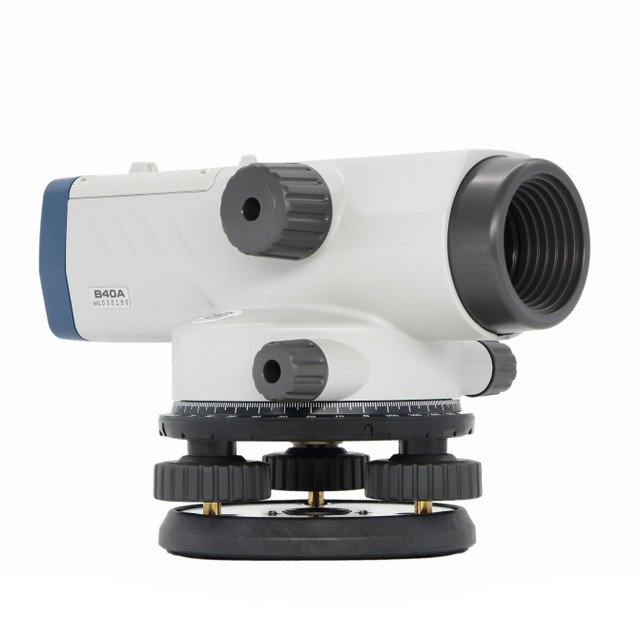

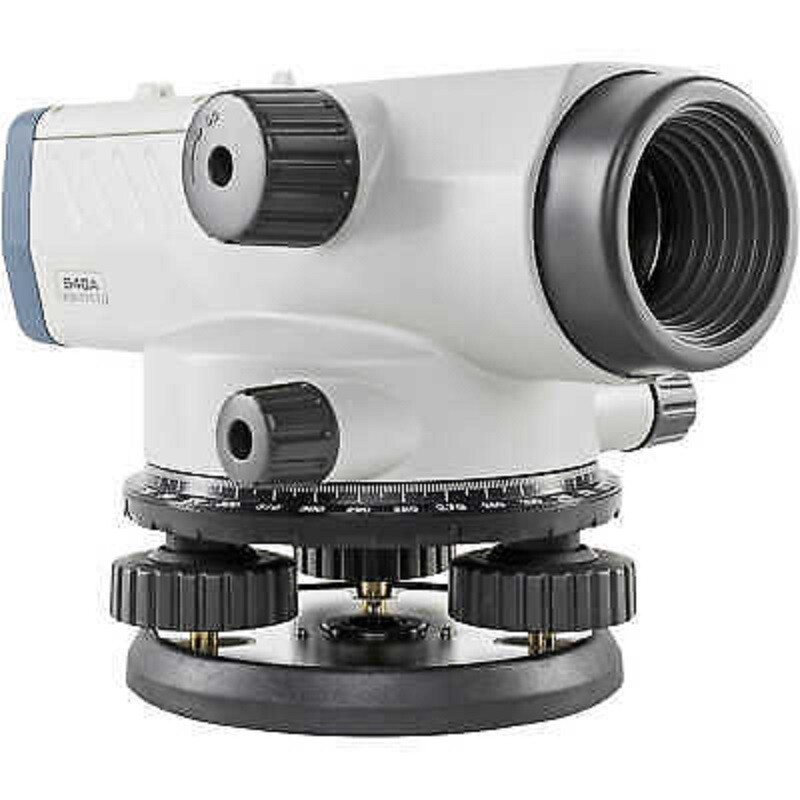

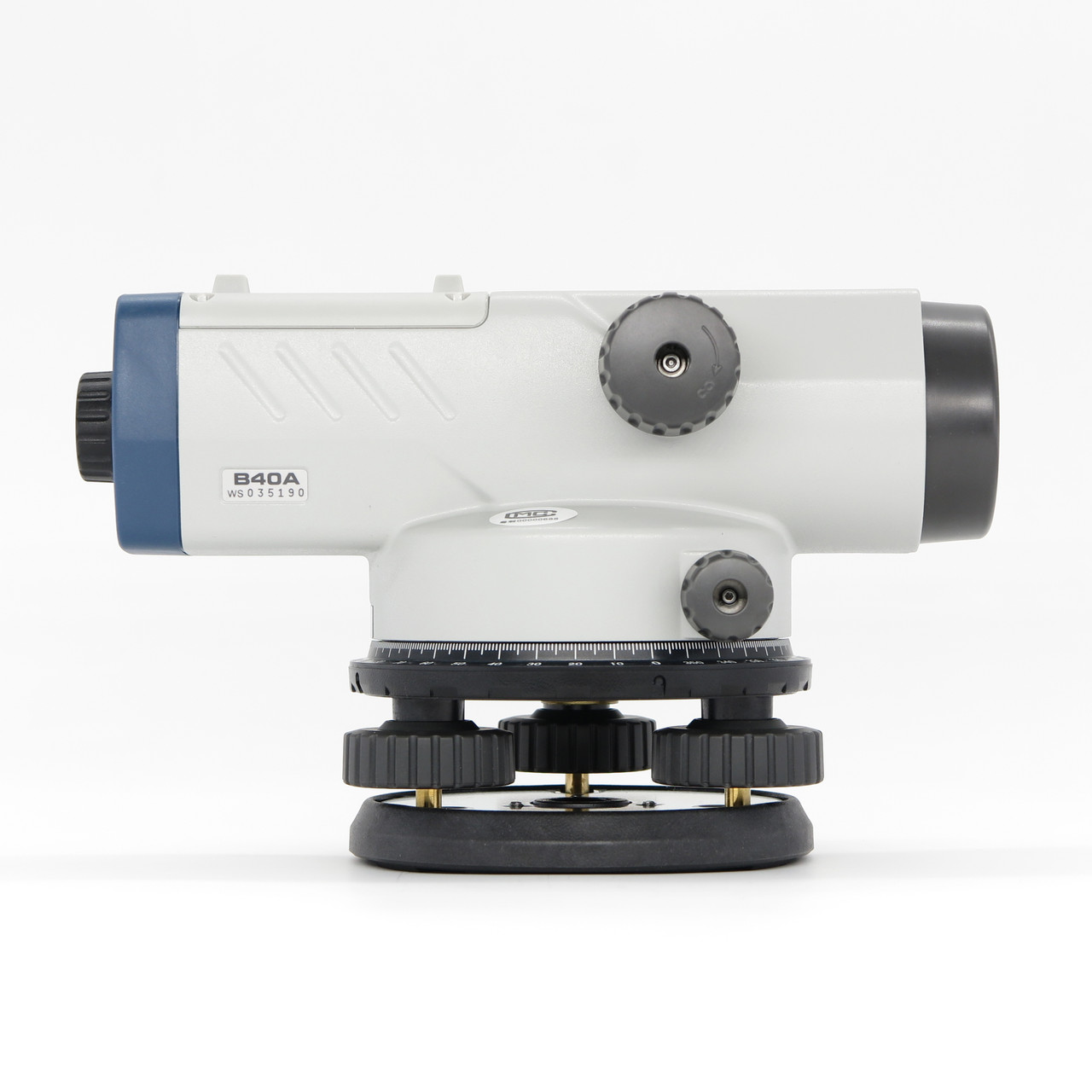

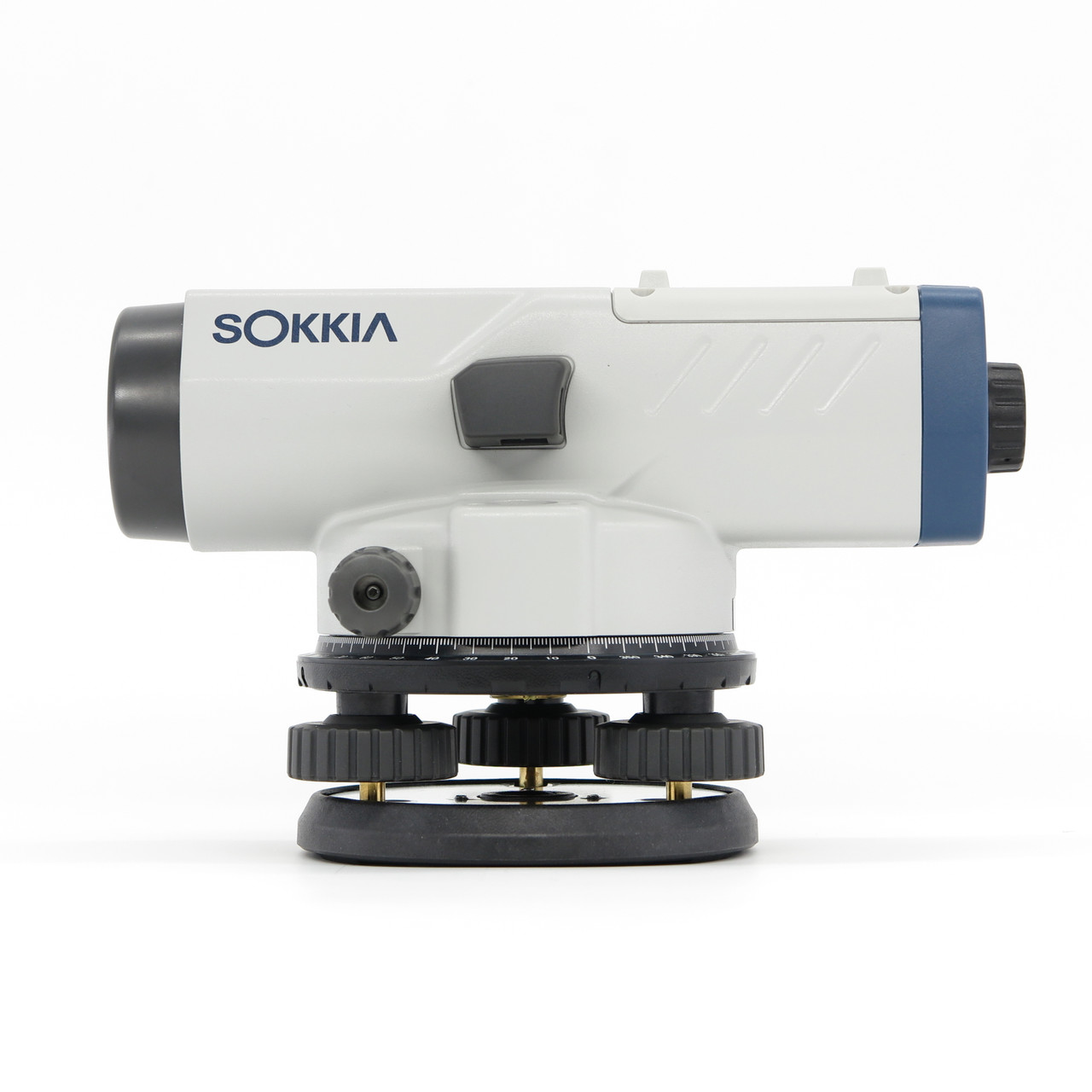

Sokkia B40A Automatic Level For Surveying Transit

Sokkia B40A-25 / Sokkia 1009572-53

24X Power Automatic Level

The Sokkia B40A-25 24X Automatic Level is a highly accurate
surveying and construction tool for taking a horizontal plane,
height, as well as distance measurements. This optical instrument
features a 24X magnification. To reduce eyestrain, it has an
approximate 1/16 in. accuracy, 0.5 arc-second accuracy and a
built-in compensator that provides exceptionally bright and sharp
views. The B40A-25 comes with an ultra-short focus distance of 7.9
in. from the end of the telescope, making it easy to use in confined
locations. This survey instrument has a 1.26 in. objective aperture,
a quick collimation and a pendulum compensator with a magnetic
dampening system. The 360° horizontal angle measurement can be taken
directly below the eyepiece. With an IPX6 rating, water projected in
powerful jets from any direction have no harmful effects. It
includes a 5/8-11 tripod thread that is compatible with most
tripods. As an extra feature, there is an optional diagonal eyepiece
that can facilitate work in extremely tight spots with little space
behind the instrument.

Sokkia 1009572-53 Automatic Level INCLUDES

•

  B40A-25 / 1009572-53 INSTRUMENT
•

  Lens Cap
•

  Cleaning cloth
•

  Vinyl Cover
•

  Tool Kit
•

  Operating manual
•

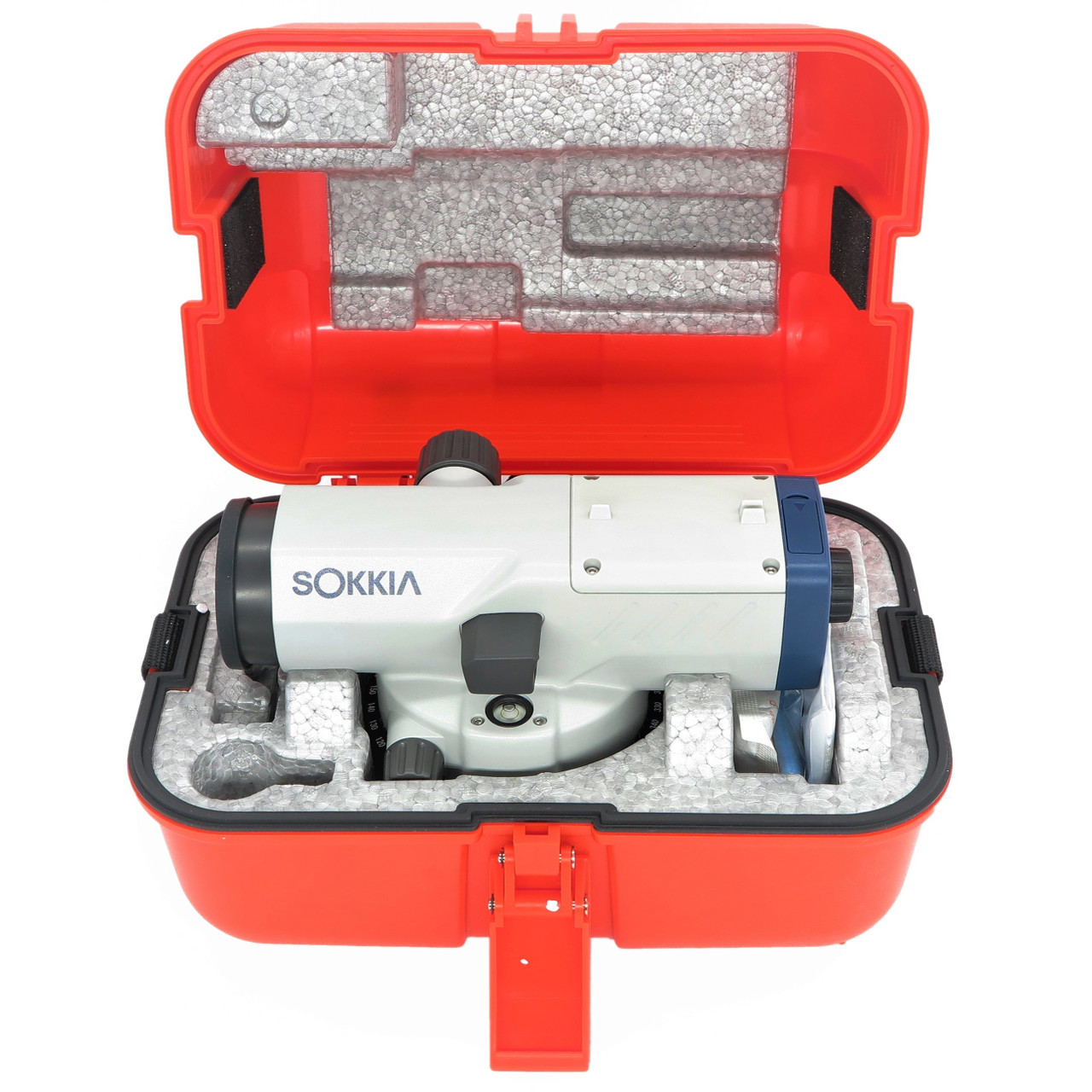

  Carrying Case



Sokkia B40A-25 Automatic Level KEY FEATURES

•

  Superior Telescope
  •
    Optimally designed telescope provides exceptionally bright
    and sharp view that reduces operator’s eye strain.
  •
    Ultra-short focus distance of 20 cm from end of telescope
    makes it easy to use in confined locations
•

  Quick Collimation
  •
    Two knobs of endless horizontal motion drives can be
    operated with either hand for fast and easy aiming.
•

  Horizontal Angle Measurement
  •
    Horizontal angles can be read in 1° or 1 gon units
  •
    Freely rotatable circle allows any angle reading from zero.
  •
    Right angles can be quickly set for layout and alignment
    tasks.
  •
    Readout window is conveniently located on the instrument
    base directly below eyepiece.
•

  Rapid, Easy Setup
  •
    A domed-head tripod makes setting up faster and easier even
    on on inclined and uneven ground
  •
    The B-Series levels also fit flat head tripods.
  •
    The circle level can be seen on a pentaprism or plane mirror
    located beside the telescope eyepiece.
•
  Enhanced reliability under all environmental conditions
•
  Tough and Compact bodies sealed against water, humidity and dust
•
  Quick setup, easy sighting and superior durability against shock
  and vibration
•
  Stadia lines on reticle allow distance measurements
•
  24X magnification
•
  Built-in compensator
•
  Quick collimation
•
  360° horizontal angle measurement
•
  IPX6 high-pressure water jet resistant
•
  Ultra-short focus distance of 7.9 in. from the end of the
  telescope
•
  Objective aperture of 1.26 in.
•
  Pendulum compensator with magnetic dampening system
•
  Compensator range: 15 arc minutes
•
  1°/1 gon horizontal circle
•
  Lightweight construction
•
  5/8 in.-11 tripod thread
•
  1/16 inch leveling accuracy and 0.5 arc-second compensator
  accuracy
•
  Magnetic system withstands accuracy and auto leveling even with
  changes in temperature, vibration and shock
•
  Product weighs 3.3 lbs.
•
  5-year manufacturers warranty
•
  Hard carrying case included

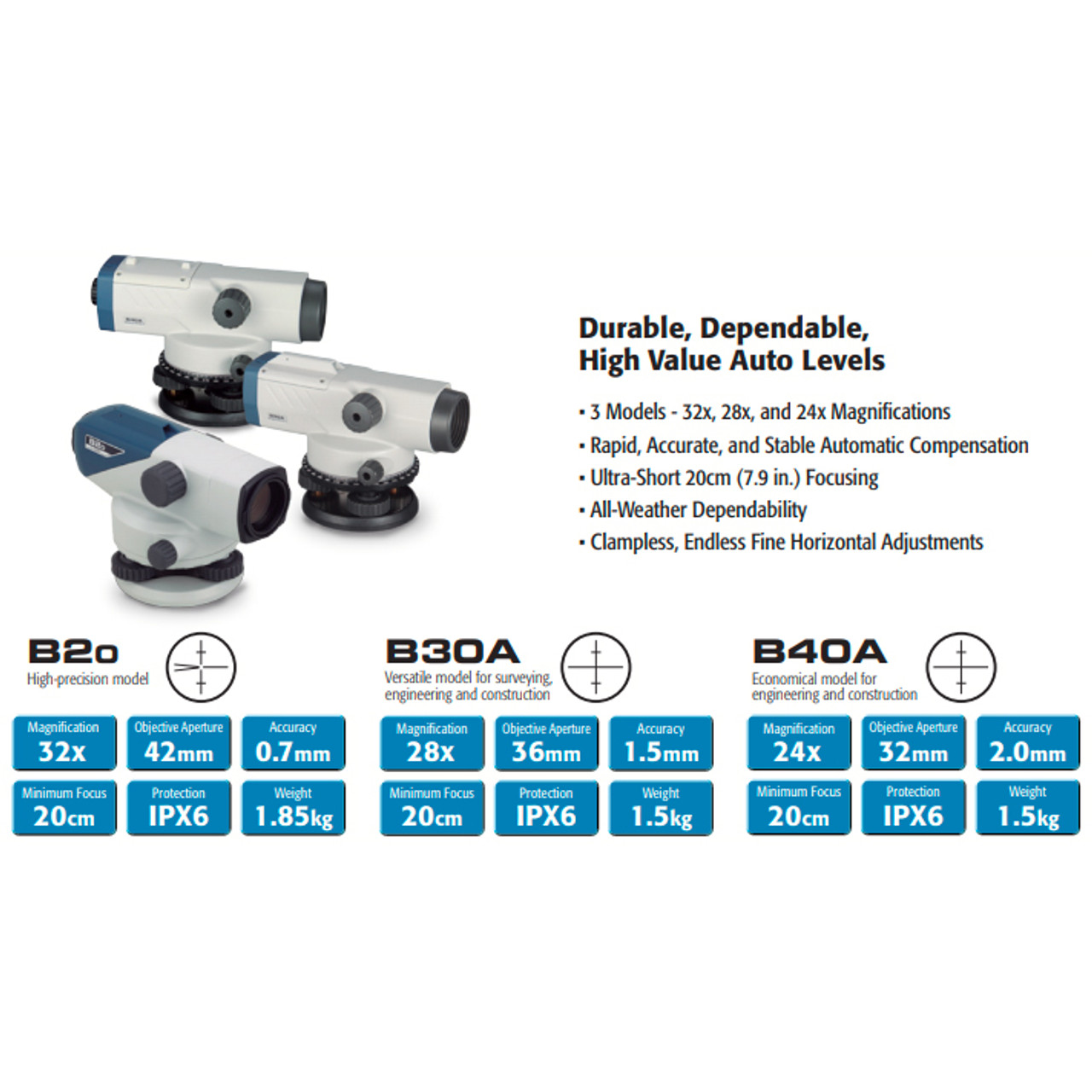

Sokkia B40A-25 1009572-53 Autolevel SPECIFICATIONS
